TriMetric Monitor Accessories

Click on images to view larger sizes


Cable AssembliesCable Assemblies
for TriMetric Meters

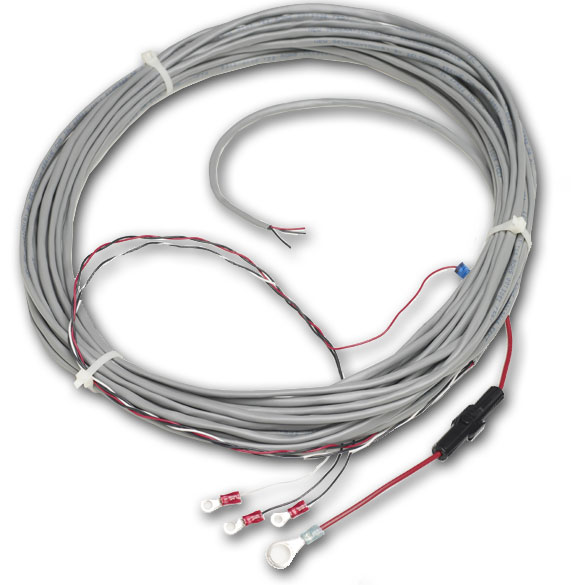

Cable Assemblies for TriMetric Meters. These connect TriMetric meters to shunts and batteries. They have four, #22 AWG gauge wires (two twisted pairs) with a 1A fuse and ring terminals for the battery shunt. Two black wires, one white and one red.

          – 35 ft cable length: Cab22-35ft
          – 50 ft cable length: Cab22-50ft

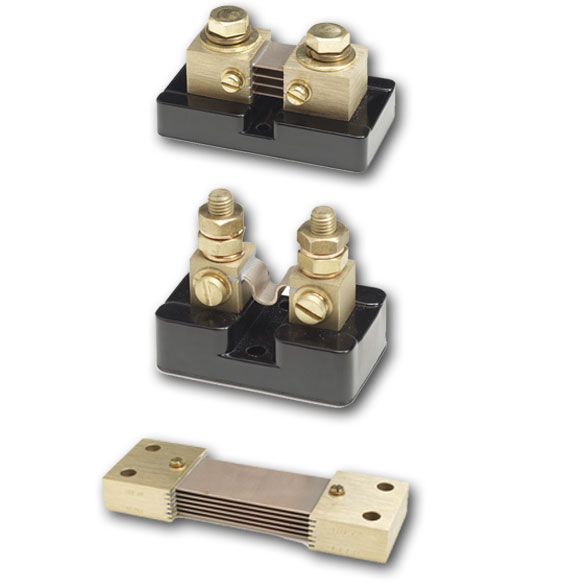

Shunts: These are necessary for TriMetric or PentaMetric monitors to measure current (amps).
They are located near the batteries. Click here for more information on Shunts.

           – 500A/50 mV SH-500-50; Maximum recommended continuous current: 410 Amps.
             Meter current resolution is 0.1 amp. Size: 3-1/4 x 1-3/4 x 1-7/8 in.; 8.25 x 4.5 x 4.75 cm.

           – 100A/100mV SH-100-100 Maximum recommended continuous current: 70 Amps.
             Meter current resolution is 0.01 amp. Size: 2 x 1-3/16 x 1-3/4 in.; 4.8 x 3 x 4.3 cm.

           – 1000A/100mV SH-1000-100 Maximum recommended continuous current 650 Amps.
             Meter current resolution is 0.1 amp. Size: 7-3/4 x 2-1/2 x 1-1/8 in.; 19.7 x 6.3 x 2.8 cm.

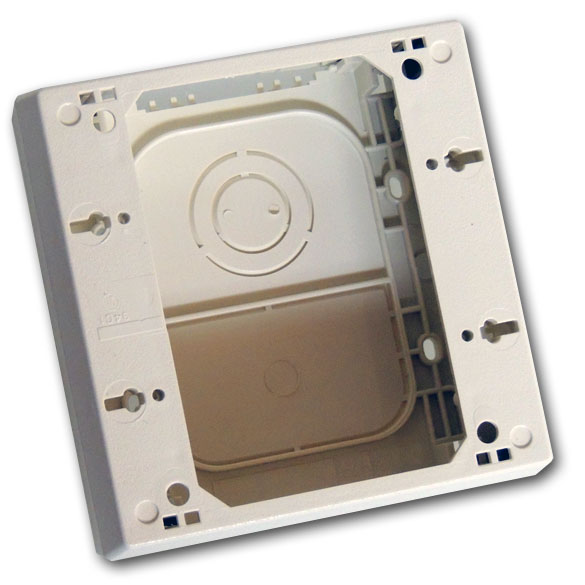

Enclosure for TM-2020, TM-2025-A, TM-2030-A. The TriMetrics with “A” suffix are designed to fit into a “double gang electrical boxes”. This is one convenient option: Size 4-3/4 x 5 x 2 in.; 12 X 12.5 X 4.5 cm


Temperature SensorsTemperature Sensors

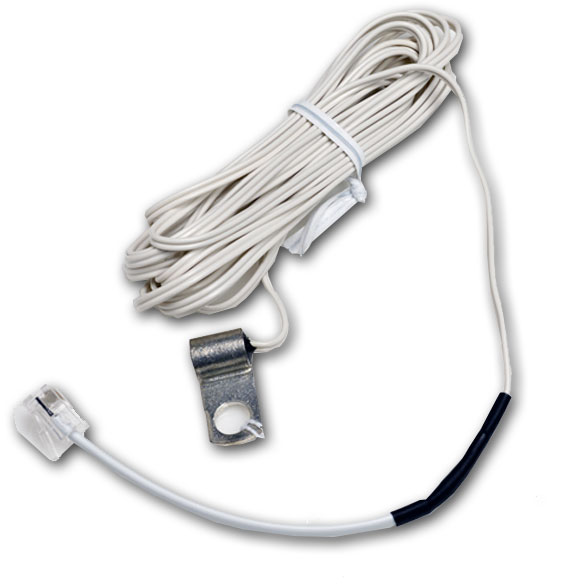

 Temperature sensors

           – Temperature sensor for SC-2030 Solar Charger: TS-2
           – Temperature sensor for PentaMetric monitoring system: TS-1


Made in the U.S.A.
